B4J Library [B4X] [XUI] SD FlexGrid (Table)

I created a new library to show a table (or grid) similar to the one in EXCEL.

There are already excellent classes that allow many to accomplish things, such as xCustomListView by @Erel (B4X) and with the FlexibleTable by @klaus (B4A). I wanted to make something slightly different suited to my needs.

WARNING
The use of libraries for personal and / or commercial use is permitted. It is not allowed to modify the sources or change the name of the library. Reverse engineering is not authorized to access the sources for any reason, not even for study or learning reasons.

Explanations:
  1. To get the calculation of the cells that contain a formula I have added Erel's B4XEval to my Library, but as soon as possible I will make it external so that everyone can modify it according to their needs.
  2. To select multiple cells, position yourself on the first cell of those to be selected (the one at the top left) click a shot and then click again and drag your finger to cover all the cells (or area) that you want to select
  3. It is still in beta version, presents problems in large grids.
  4. Now only for B4A and B4i Now for B4A,B4i,B4j
  5. In the example to select a group of cells just long click on a cell (not checkbox). In the case of B4J click with the right mouse button

SD_FlexGrid

Author: Star-Dust
Version: 0.45
  • Eval
    version 2.00
    Eval Method By Erel: https://www.b4x.com/android/forum/threads/b4x-eval-expressions-evaluator.54629/
    • Fields:
      • Error As Boolean
    • Functions:
      • Calculate (Expression As String) As Double
      • Class_Globals As String
      • Initialize (FG As FlexGrid) As String
      • IsInitialized As Boolean
        Verifica se l'oggetto sia stato inizializzato.
  • FlexGrid
    • Events:
      • CellClick (Row As Int, Col As Int)
      • CellLongClick (Row As Int, Col As Int)
      • FeetClick (Index As Int)
      • HeadClick (Index As Int)
      • Modified (Row As Int, Col As Int)
      • ScrollX (Position As Double)
      • ScrollY (Position As Double)
    • Fields:
      • EditBackgroundColor As Int
      • EditTextColor As Int
      • TypeButton As Int
      • TypeCheck As Int
      • TypeDouble As Int
      • TypeFloat As Int
      • TypeImage As Int
      • TypeInt As Int
      • TypeList As Int
      • TypeString As Int
    • Functions:
      • AddRow (Cell As Object(), Refresh As Boolean) As String
        eg. Flexgrid.AddRow(Array As Object(i,B,"User ","Description " ,100.00), True)
      • AddRow2 (Cell As Object(), HeightRow As Int, Refresh As Boolean) As String
        eg. Flexgrid.AddRow(Array As Object(i,B,"User ","Description " ,100.00),40dip,True)
      • AddRowAt (index As Int, Cell As Object(), Refresh As Boolean) As String
        eg. Flexgrid.AddRow(2,Array As Object(i,B,"User ","Description " ,100.00), True)
      • AddRowCustomize (Cell As Object(), Text_Color As Int, Background_Color As Int, TextFont As B4XFont, Refresh As Boolean) As String
      • AddToParent (Parent As B4XView, Left As Int, Top As Int, Width As Int, Height As Int, ColsNumber As Int) As String
        Parent is Panel to Add Grid
        eg. Flexgrid.AddToParent(Activity,0,0,100%x,100%y,5)
      • Class_Globals As String
      • ClearRows As String
        erase all rows contents
      • ClearSelection As String
        cell no longer be selected.
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • EditCell (Row As Int, Col As Int) As String
        eg. Flexgrid.EditCell(1,1)
      • EditCellOnSite (Row As Int, Col As Int) As String
        eg. Flexgrid.EditCell(1,1)
      • GetCellBackgroundColor (Row As Int, Col As Int) As Int
      • GetCellCol (Col As Int) As Object()
        eg. Dim S() as String = Flexgrid.GetCellCol(1)
        eg. Dim B() as Boolean = Flexgrid.GetCellCol(2)
      • GetCellRow (Row As Int) As Object()
        eg Dim Row() as Object = Flexgrid.GetCellRow(1)
      • GetCellTextColor (Row As Int, Col As Int) As Int
      • GetCellTextFont (Row As Int, Col As Int) As B4XFont
      • GetCellValue (Row As Int, Col As Int) As Object
        eg. Dim I as int = Flexgrid.GetCellValue(1,1)
        eg. Dim S as String = FlexGrid.GetCellValue(2,2)
      • GetTypeCol (Col As Int) As Int
        eg. If Flexgrid.GetTypeCol(1)=Flexgrid.TypeInt Then .....
      • Initialize (Callback As Object, EventName As String) As String
      • Invalidate As String
      • IsInitialized As Boolean
        Verifica se l'oggetto sia stato inizializzato.
      • RemoveRow (Row As Int) As String
        Row (0...n-1)
        eg. Flexgrid.RemoveRow(1)
      • ResetCustomizeCell (Col As Int, Row As Int) As String
        eg. Flexgrid.ResetCustomizeCell(1,1)
      • SearchInColumn (Text As String, Col As Int, FromRow As Int, exactly As Boolean, IgnoreCap As Boolean) As Int
        Search for text in the indicated column starting from the start row.
        If the start row is 0 it will check the entire column.
        It will return the position of the line containing the text
        <code>Dim Col As Int = 5
        Dim Row As Int = FlexGied1.SearchInColumn("My text",Col,0, False, True)
        if Row>-1 then Log("Find in row " & Row) Else log("Don't find")
        </code>
      • SearchInColumn2 (Text As String, Col As Int, FromRow As Int, exactly As Boolean, IgnoreCap As Boolean) As List
        Search for text in the indicated column starting from the start row.
        If the start row is 0 it will check the entire column.
        It will return the list of position of the line containing the text
        <code>Dim Col As Int = 5
        Dim IndexFinded As List = FlexGied1.SearchInColumn2("My text",Col,0, False, True)
        if IndexFinded.Size>0 then Log("Find in row " & Row) Else log("Don't find")
        </code>
      • SelectCell (Row As Int, Col As Int, Mobile As Boolean) As String
        eg. Flexgrid.SelectCell(1,1,True)
        If Mobile is True, the selectable area can be enlarged by touching and dragging it to the desired box.
      • SelectCells (FromRow As Int, FromCol As Int, ToRow As Int, ToCol As Int, Mobile As Boolean) As String
        eg. Flexgrid.SelectCell(1,1,5,4,True)
        If Mobile is True, the selectable area can be enlarged by touching and dragging it to the desired box.
      • SelectCol (Col As Int) As String
        eg. Flexgrid.SelectCol(1)
      • SelectRow (Row As Int) As String
        eg. Flexgrid.SelectRow(1)
      • SetCellCustomize (Row As Int, Col As Int, Text_Color As Int, Background_Color As Int, TextFont As B4XFont) As String
        eg. Flexgrid.SetCellCustomize(1,1,XUI.Color_Black,XUI.Color_White,XUi.CreateDefaultFont(12))
      • SetCellListIndex (Row As Int, Col As Int, Index As Int) As String

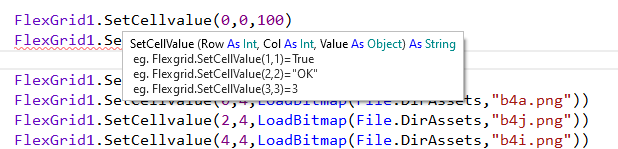

      • SetCellValue (Row As Int, Col As Int, Value As Object) As String
        eg. Flexgrid.SetCellValue(1,1,True)
        eg. Flexgrid.SetCellValue(2,2,"OK")
        eg. Flexgrid.SetCellValue(3,3,3)
        eg. Flexgrid.SetCellValue(Row,Col,"A,B,C,D,E") for TypeList
      • SetColAlignment (ColumnIndex As Int, Alignment As String) As String
        Index (0..n-1)
        eg. SetColAlignment(0,"CENTER")
      • SetColCustomize (Col As Int, Text_Color As Int, Background_Color As Int, TextFont As B4XFont) As String
        eg. Flexgrid.SetColCistomize(1,XUI.Color_Black,XUI.Color_White,XUi.CreateDefaultFont(12))
      • SetColName (ColumnIndex As Int, Name As String) As String
        Index (0..n-1)
        eg. Flexgrid.SetColName(1,"Help")
      • SetColsNumber (ColumnNumber As Int) As String
        Reset Grid and Change Cols Number
      • SetColType (ColumnIndex As Int, Typ As Int) As String
        Index (0..n-1)
        eg. SetColType(0,FlexGrid.TypeInt)
      • SetColWidth (ColumnIndex As Int, Width As Int) As String
        Index (0..n-1)
        eg. SetColWidth(0,100dip)
      • SetDataRow (Row As Int, Cell As Object()) As String
        eg. Flexgrid.SetRow(Row,Array As Object(i,B,"User ","Description " ,100.00))
      • SetDataRow2 (Row As Int, Cell As Object(), HeightRow As Int) As String
        eg. Flexgrid.SetRow2(Row,Array As Object(i,B,"User ","Description " ,100.00),40dip)
      • SetFeetHeight (Height As Int) As String
        Set Header Height
      • setFootColValue (col As Int, Fv As String) As String
        eg. Flexgrid.FeetValue=array As String ("First","Second")
      • setHeaderAlignment (Col As Int, Alignment As String) As String
        eg. Flexgrid.HeaderAlignment="CENTER"
      • SetHeadHeight (Height As Int) As String
        Set Header Height
      • SetPadding (Left As Int, Top As Int, Right As Int, Bottom As Int) As String
        eg. FlexGrid1.SetPadding(10dip,0,10dip,0)
      • SetRowCustomize (Row As Int, Text_Color As Int, Background_Color As Int, TextFont As B4XFont) As String
        eg. Flexgrid.SetRowCustomize(1,XUI.Color_Black,XUI.Color_White,XUi.CreateDefaultFont(12))
      • SetRowHeight (IndexRow As Int, Height As Int) As String
        IndexRow (0..Size-1)
        eg. setRowHeight(0,60dip)
      • SetRowsHeight (Height As Int) As String
        Set all Rows Height
      • SetSingleLine (SLine As Boolean) As String
        To set the cells to single or multiple lines
      • SortForCol (Column As Int) As String
    • Properties:
      • Base As B4XView [read only]
      • ColCount As Int [read only]
      • ColorSelectedArea
        Set the color of the selected area
      • ColorSelectingArea
        Set the color of the area during the selection phase
      • ColsAlignment
        eg. setColsAlignment(Array As String ("LEFT","CENTER","CENTER","RIGHT"))
      • ColsName As String()
        eg. Flexgrid.ColName=array As String ("First","Second")
      • ColsType
        eg. ColsType=Array As Int(FlexGrid1.TypeInt,FlexGrid1.TypeCheck,FlexGrid1.TypeString,FlexGrid1.TypeString,FlexGrid1.TypeFloat)
      • ColsWidth
        eg. SetColsWìdth(Array As Int (100dip,50dip,100dip,100dip))
      • Font
        eg. Flexgrid.Font=xui.CreateDefaultFont(12)
      • FootFont
        eg. Flexgrid.FeetFont=xui.CreateDefaultFont(12)
      • FootValue As String()
        eg. Flexgrid.FeetValue=array As String ("First","Second")
      • FootVisible
        eg. FG.FeetVisible=True
      • HeaderFont
        eg. Flexgrid.HeaderFont=xui.CreateDefaultFont(12)
      • HeaderVisible
        eg. FG.HeadVisible=True
      • Height As Int
      • RowCount As Int [read only]
        Dim Size as int = Flexgrid.RowCount
      • ScrollToCol
        eg. Flexgrid.ScroolToCol=50 (Col= 0..Size-1)
      • ScrollToRow
        eg. Flexgrid.ScroolToRow=50 (Row= 0..Size-1)
      • ScrollX As Double
      • ScrollY As Double
      • SelectedColumnEnd As Int [read only]
        return -1 if not selected
      • SelectedColumnStart As Int [read only]
        return -1 if not selected
      • SelectedRowEnd As Int [read only]
        return -1 if not selected
      • SelectedRowStart As Int [read only]
        return -1 if not selected
      • Width As Int





List/Spinner
video7-gif.118379


For more details: https://www.b4x.com/android/forum/threads/xui-flexgrid.98686/

Significative release logs:
  • 0.12
    • Add method SelectCells (FromRow As Int, FromCol As Int, ToRow As Int, ToCol As Int, Mobile As Boolean)
    • Modify method SelectCell (Row As Int, Col As Int, Mobile As Boolean)
  • 0.15: Added HeaderFont
  • 0.16: Added SetColsNumber method.
  • 0.19 (Sample)
    • Add method AddRowCustomize (Cell As Object()
    • Add method SearchInColumn (Text As String, Col As Int, FromRow As Int, exactly As Boolean, IgnoreCap As Boolean) As Int
  • 0.21
    • Add TypeList. Allows you to add a ComboBox type box (Spinner in B4A and Picker in B4i) and select to a list
    • Added other examples to POST n. 2 To populate the grid from the database, search for a string in a column and to use TypeList in the grid
    • added SetCellListIndex method to change the position of the selected index
  • 0.25
    • Added SetHeadHeight method
      sets the height of the header
    • Added SetRowsHeight method
      sets the height of all lines
  • 0.27
    • added properties ScrollX and ScrollY
    • Added events ScrollX() and ScrollY()
  • 0.29: Fixed bugs in vertical scrolling
  • 0.31
    • Added SortForCol(Column As Int)
    • Added SetDataRow(Row As Int, Cell() As Object) and SetDataRow2(Row As Int, Cell() As Object, HeightRow As Int)
    • Added field ColorSelectedArea and ColorSelectingArea
    • Fix bug
  • 0.32
    • Added SearchInColumn2. Returns the list of search result lines
  • 0.33
    • Added setHeaderAlignment
  • 0.34
    • Added the ability to freeze the last row (foot row) as well as the header so you can enter column totals that always remain visible
    • Fix minor bugs
  • 0.35
    • Added the ability to select from Design that text cells are single or multiline
  • 0.36
    • Fix bugs: SortForCol; SetColsNumber
  • 0.37
    • Added: EditTextColor and EditBackgroundColor fields to be able to select colors for the on-site editable cell. By default it is black background and white text
  • 0.38
    • Fixed bug on CheckBox alignment
  • 0.39
    • Singleline and multiline option of the design now also affects the column header and column foot
  • 0.40
    • Added ScrollToCol (together with ScrollToRow it is possible to position in a specific cell)
  • 0.41
    • Fix bug
  • 0.42
    • Added Width and Height to change the size of the grid from code during execution
  • 0.43
    • Fixed bug on SearchInColumn2
  • 0.44
    • Added SetSingleLine - To set the cells to single or multiple lines
  • 0.45
    • Added SetPadding


Attachments

  • B4A Sample.zip
    31 KB · Views: 1,525
  • B4i Sample.zip
    24.2 KB · Views: 805
  • B4j Sample.zip
    23.9 KB · Views: 1,240
  • SD_FlexGrid 0.45.zip
    37.9 KB · Views: 449
  • jSD_FlexGrid 0.45.zip
    38.7 KB · Views: 339
  • iSD_FlexGrid 0.45.zip
    327.4 KB · Views: 294
Last edited:
Click to expand...
Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
yuhaowang said:
Hello. My B4A test is invalid, please help me to see how to modify it.
Click to expand...
You just need to add a little pause after populating the grid.

You find it in the original example. If you heavily populate a grid, he waits half a second before updating the views so that he doesn't have to continually update
B4X:
    Activity.LoadLayout("Layout1")
    Ev.Initialize(FlexGrid1)
    FlexGrid1.ColsName=Array As String("","N","On","Name","Img","Digit")
    FlexGrid1.ColsWidth=Array As Int(75dip,50dip,50dip,100dip,60dip,100dip)
    FlexGrid1.ColsType=Array As Int(FlexGrid1.TypeButton,FlexGrid1.TypeInt,FlexGrid1.TypeCheck,FlexGrid1.TypeString,FlexGrid1.TypeImage,FlexGrid1.TypeFloat)
    FlexGrid1.ColsAlignment=Array As String("CENTER","CENTER","CENTER","LEFT","LEFT","RIGHT")

    FlexGrid1.SetColCustomize(0,0xFF5BC17D,xui.Color_RGB(240,240,240),xui.CreateDefaultFont(14))
    FlexGrid1.ActiveCheckBox=False

    Dim B As Boolean=False
    For i=1 To 100
        B=Not(B)
        FlexGrid1.AddRow(Array As Object("B" &i,i,B,"User " & i,Null,Rnd(50,10000)/100),True)
    Next

    Sleep(500) ' Add Pause'
    FlexGrid1.ScrollToRow=FlexGrid1.RowCount

Y

yuhaowang

Member
Star-Dust said:
You just need to add a little pause after populating the grid.

You find it in the original example. If you heavily populate a grid, he waits half a second before updating the views so that he doesn't have to continually update
B4X:
    Activity.LoadLayout("Layout1")
    Ev.Initialize(FlexGrid1)
    FlexGrid1.ColsName=Array As String("","N","On","Name","Img","Digit")
    FlexGrid1.ColsWidth=Array As Int(75dip,50dip,50dip,100dip,60dip,100dip)
    FlexGrid1.ColsType=Array As Int(FlexGrid1.TypeButton,FlexGrid1.TypeInt,FlexGrid1.TypeCheck,FlexGrid1.TypeString,FlexGrid1.TypeImage,FlexGrid1.TypeFloat)
    FlexGrid1.ColsAlignment=Array As String("CENTER","CENTER","CENTER","LEFT","LEFT","RIGHT")

    FlexGrid1.SetColCustomize(0,0xFF5BC17D,xui.Color_RGB(240,240,240),xui.CreateDefaultFont(14))
    FlexGrid1.ActiveCheckBox=False

    Dim B As Boolean=False
    For i=1 To 100
        B=Not(B)
        FlexGrid1.AddRow(Array As Object("B" &i,i,B,"User " & i,Null,Rnd(50,10000)/100),True)
    Next

    Sleep(500) ' Add Pause'
    FlexGrid1.ScrollToRow=FlexGrid1.RowCount
Click to expand...
thank you so much

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Update rel 0.06
Add method: ColCount as int [read only]​

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Update 0.07

Now if a cell is defined as a string it also accepts CSBuild (both in android and iOS)​

NB. The examples with have also been updated

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Erel said:
BTW, there is a useful method for this in XUI Views:
B4X:
XUIViewsUtils.SetTextOrCSBuilderToLabel(...)
Click to expand...
I just relied on this code ?

[B4X] Set CSBuilder or Text to a Label

Edit: This sub is included in XUI Views library: XUIViewsUtils.SetTextOrCSBuilderToLabel This sub accepts a string or CSBuilder and sets it as the Label's text. It is useful for cross platform solutions. Note that the Text parameter type is Object. Public Sub SetTextOrCSBuilderToLabel(xlbl As...
www.b4x.com www.b4x.com

Y

yuhaowang

Member
Hello. How can I turn off/on table refresh?

FlexGrid1.visible=false
.....
FlexGrid1.visible=true


FlexGrid1.Redraw=false
.......
FlexGrid1.Redraw=True

??????????????????????

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Update 0.08
if a cell is defined as a Button it also accepts CSBuild (both in android and iOS)​
Fix Bugs ClearRow​

S

sn_nn

Member
Licensed User
Longtime User
Hello, Star-Dust! Your FlexGrid is very usable. From ver 0.07 char sequenses are supported.
But 2 small thinks are missing...;) :
1. Not supported clickable words by csbuilder in the cells
2. I can't clear selection for cells, something like this:
B4X:
UnselectCell(Row,Col)

May be it's possible to do by another way?

Last edited:
Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
You can delete the selection
B4X:
SD_FlexGrid1.ClearSelection

Sabotto

Sabotto

Well-Known Member
Licensed User
FlexGrid Example is not responding. Do you want to close it?
This msgbox appears as soon as I click on a checkbox in the list.
I click on it, it removes the tick, but from that moment on it no longer responds to commands (scrolling, etc.) and after 3-4 seconds the message appears.
Can you tell me why? Or check if it's just my problem?
The only thing I have changed (for testing purposes) is to set the column width "Name" to 400

B4X:
FlexGrid1.ColsWidth=Array As Int(75dip,50dip,50dip,400dip,60dip,100dip)

Last edited:
Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Sabotto said:
FlexGrid Example non risponde. Vuoi chiuderla?
Mi appare questa msgbox appena clicco su un checkbox della lista.
Ci clicco, mi toglie la spunta, ma da quel momento in poi non risponde piu ai comandi (scorrimento ecc) e dopo 3 4 secondi appare il messaggio
Puoi dirmi perchè? O controllare se è un problema solo mio?
L'unica cosa che ho cambiato(per fare delle prove) è mettere la larghezza colonna "Name" a 400

B4X:
FlexGrid1.ColsWidth=Array As Int(75dip,50dip,50dip,400dip,60dip,100dip)
Click to expand...
I'll do some tests.
Please use the English language in this forum space

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Update 0.09
Fixed bugs on checkbox​

Sabotto

Sabotto

Well-Known Member
Licensed User
I take this opportunity to report this other little bug to you too (unfortunately I am only suffering from it now ..) Intellisense suggests using the "SetCellValue" method incorrectly (I assume it used to be a property ..)
help errore.png

Sabotto

Sabotto

Well-Known Member
Licensed User
thanks a lot.
Other two questions
1) If I want to change only the text color of a cell, leaving everything else unchanged (backgrund color, font type and size, etc.) it is possible to do ?
example
B4X:
FlexGrid1.SetCellCustomize (r, c, xui.Color_Blue, xui.Color_Yellow, xui.CreateDefaultBoldFont (16))
'suppose I only want to change xui.Color_Blue to xui.Color_Green, do I have to rewrite the whole statement with all parameters which will not be touched?
Or I can do something like
B4X:
CellTetxtColor (r, c) = xui.Color_Green

2) How do I access the font type and size of a given cell?

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
only this:
B4X:
FlexGrid1.SetCellCustomize (r, c, xui.Color_Green, xui.Color_Yellow, xui.CreateDefaultBoldFont (16))

You must log in or register to reply here.

Similar Threads

LucaMs
  • Article
B4A Library [B4X] lmB4XTableExt
Replies
13
Views
5K
LucaMs
LucaMs
Star-Dust
  • Article
B4J Library [B4X] [B4XLib] [XUI] SD_xMultiSpinner
Replies
10
Views
4K
Star-Dust
Star-Dust
xulihang
  • Article
B4A Library [B4X] [B4XPages] Dynamsoft Barcode Reader - Cross-Platform Barcode/QR Code Scanning Library
Replies
10
Views
9K
xulihang
xulihang
Star-Dust
  • Article
B4J Library [B4X] [XUI] [B4xLib] SD LoadingIndicator
2
Replies
36
Views
10K
Star-Dust
Star-Dust
Star-Dust
  • Article
Android Example [B4X] Library Templates
Replies
0
Views
2K
Star-Dust
Star-Dust
Top
