B4J Library [B4X] [XUI] xChart Class and b4xlib

Current version 9.8

A lite version is available: xChartLite.
A mini version is also available: xChartMini.

Learning B4XViews and XUI, I wrote this CustomView xChart Class.
It is an evolution of Erels' Android Charts Framework.

The xChart custom view is a B4X libary.
It works on all three platforms: B4A, B4i and B4J.
The xChart.b4xlib and the xChart.xml files are attached.
You need to copy the xChart.b4xlib file to the AdditionlLibraries\B4X folder!
The recommended AdditionlLibraries folder structure is explained HERE.

Do not copy the xChart.xml file to the AdditionalLibraries folder, copy it in another folder for all b4xlib xml files.
Example: AdditionlLibraries\B4XlibXMLFiles
The xChart.xml file is for help purposes only and is useful with the B4X Help Viewer or the B4XObjectBrowser.
The xChart.xml file was generated with this tool: b4xlib - XML generation

It has automatic scales, linear and logarithmic, automatic text size according to the chart size.
These can also be set manually.

Demo projects for all three platforms as a B4XPages project.
Tested on PC, Android Samsung S10, Samsung Tab S2, iPhone 8 and iPad.
B4XPagesxChartDemoV8_8.zip A B4XPages cross platform project using the xChart library, you need to copy the xChart.b4xlib file into your AdditionalLibraries\B4X folder.
B4JLogScaleV8_8.zip B4J project showing the logarithmic scales, it uses also the xChart library.
xChart.b4xlib The xChart B4X library file. You must copy it into your your AdditionalLibraries\B4X folder.
xChart.xml Help file, it is useful with the B4X Help Viewer or the B4XObjectBrowser.
Don’t copy the xChart.xml file to the AdditionalLibraries folder! Look above.





This image is from the B4JLogScale demo project, there is only a B4J project to show logarithmic scale examples.
The principles are the same for the two other platforms.



4 lines with 4 different scales the same lines with the same scale.



Radar type chart


H_BAR chart type H_STACKED_BAR chart type

The horizontal scale can be either on bottom, default, or on top.
The vertical scale values can go from bottom to top, default, or from top to bottom.

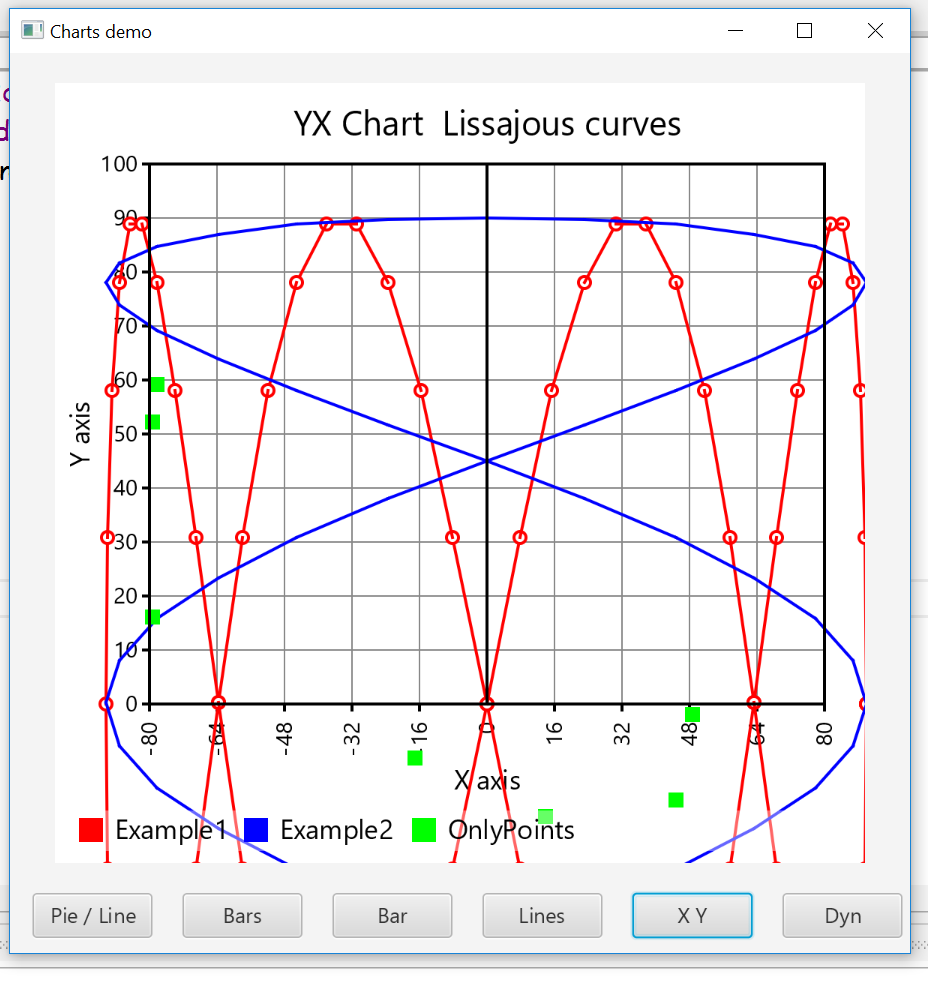

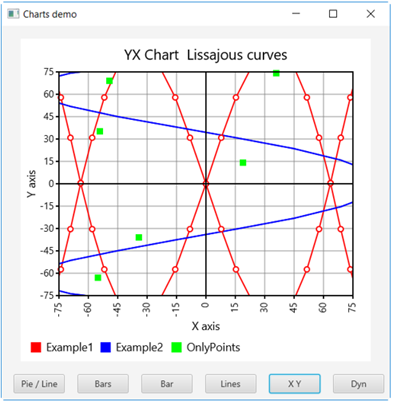

YX_CHART with display of the cursor position.
When the cursor is on a point, the cross-hair color changes to the curve color and a circle is drawn at the point if no points are drawn.



AREA and STACKED_AREA chart




CANDLE chart



WATERFALL chart



BUBBLE chart

EDIT: 2023.08.06 Version 9.8
Changed SetZoomIndexes Zoom.EndIndex not limited to previous Zoom.EndIndex
Set zoom min cursor width from 10dip to 15dip
The first change allows zooming with dynamic data input and move the zoom cursor at the end.
Demo program for dynamic data and zoom.
Only the xChart.b4xlib and xChart.xml files have been updated.

EDIT: 2023.06.08 Version 9.7
Added a warning for the RemovePointData method
Changed getNbPonts to Return Points.size
Added ZoombarEnabled property, code only not in the Designer
Only the xChart.b4xlib and xChart.xml files have been updated.

EDIT: 2023.03.13 Version 9.6
Amended a problem with zoom.

EDIT: 2023.03.11 Version 9.5
Amended AutomaticScales with only one point
Only the xChart.b4xlib and xChart.xml files have been updated.

EDIT: 2023.02.12 Version 9.4
Added SetZoomSteps(SmallStep As Int, BigStep As Int) method
Added ZoomLeftButtonClick, ZoomRightButtonClick, ZoomLeftAreanClick and ZoomRightAreaClick events
Added ZoomSmallStep, ZoomBigStep, ZoomBeginIndex, ZoomEndIndex and ZoomNbVisiblePoints properties read only
Amended multiple zoom problem
Amended GetCursorIndex when zoomed
Added XZeroAxis and XZeroAxisHighlight properties
Only the xChart.b4xlib and xChart.xml files have been updated.

EDIT: 2022.10.12 Version 9.2
Added SetCustomFont(CustomFontName, CustomFontScale) method,example HERE.
Amended legend top position overlapping with the title.
Only the xChart.b4xlib and xChart.xml files have been updated.

EDIT: 2022.10.08 Version 9.1
Replaced all Props.Get by Props.GetDefault
Amended problem with DisplayValues, DisplayCursor and DisplayValuesOnHover
Added GetMaxNumberBars2, does not need to know the data values.
Added PieGapDegrees and PieAddPercentage properties in the code
Only the xChart.b4xlib and xChart.xml files have been updated.

EDIT: 2022.06.26 Version 9.0
Added the DisplayValuesOnHover property: Show values when hovering with the cursor over a chart; valid only for B4J.
Only the xChart.b4xlib and the xChart.xml file have been updated, the xChart.bas file has been removed.

EDIT: 2022.06.01 Version 8.9
Amended problem with min bar width for STACKED_BAR charts.
Only the xChart.b4xlib, xChart.bas and xChart.xml files have been updated.

EDIT: 2022.04.24 Version 8.8
Added a new property: CandleDisplayVolume, False by default
Added a new method: AddCandlePoint2 including the Volume parameter
Renamed CursorIndex to CursorPointIndex in the CursorTouch event routine
Added DisplayCursor property to allow to display the cursor without displaying the values, False by default

EDIT: 2022.04.20 Version 8.7
Amended bottom margin when no X scale is displayed.

EDIT: 2022.04.15 Version 8.6
Added BUBBLE chart and BubbleDiameterMax, BubbleDiameterMin and BubbleSmallSnap properties.

EDIT: 2022.03.31 Version 8.5
Added WATERFALL chart and the WaterfallTotalBarColor property.
The CandleDecreaseColor and CandleIncreaseColor properties were changed to DecreaseColor and IncreaseColor.
These properties are also used with WATERFALL charts.

EDIT: 2022.03.27 Version 8.4
Added the CandleWickWidth property
Changed the word Shadow to Wick for the Candle properties

EDIT: 2022.03.27 Version 8.3
Version 8.3
Added CANDLE chart
Version 8.2
Added the YAxisName2 property, a second Y axis name for different scales

EDIT: 2021.11.29 Version 8.1
Added a HideLine method allowing to not display a line.
Added SetYScaleNMinValue, GetYScaleNMinValue, SetYScaleNMaxValue and GetYScaleNMaxValue methods.
Amended problem with DrawLinesNScales and zoom
Amended some minor problems.

EDIT: 2021.11.29 Version 8.0
Amended graph height when no x scale nor x axis name.
Added display of a YXChart line with only one point value with logarithmic scales.

I removed the old update history.

xCharts

Author: Klaus CHRISTL (klaus)
Version: 9.8
  • xChart
    • Events:
      • CursorTouch (Action As Int, CursorPointIndex As Int)
      • Touch (X As Double, Y As Double)
      • ZoomLeftAreaClick
      • ZoomLeftButtonClick
      • ZoomRightAreaClick
      • ZoomRightButtonClick
    • Fields:
      • xBase As B4XView
      • Items As List
        Items are Bars, Lines etc.
      • Points As List
        Points contain the point coordinates.
    • Methods:
      • AddBar (Name As String, BarColor As Int) As String
        adds a bar
        only for Bar and StackedBar charts !
      • AddBarMultiplePoint (X As String, YArray As Double())
        adds multibar points data
        only for Bar and StackedBar charts !
      • AddBarPointData (X As String, Y As Double) As String)
        adds single bar point data
        only for Bar charts !
      • AddBubble (SerieIndex As Int, X As Double, Y As Double, Value v Double)
        Adds a point in the given Bubble series.
        A series Bubble has no name but an x / y position and a value.
        The value determines the area of the circle and not the radius nor diameter.
        Only for BUBBLE charts.
      • AddBubbleSeries (Name As String, BubbleColor As Int)
        Adds a Bubble series.
        A Bubble series has a name and can contain bubbles with a value at different positions.
        Only for BUBBLE charts.
      • AddBubbleSingle (Name As String, X As Double, Y As Double, Value As Double, BubbleColor As Int)
        Adds a single Bubble.
        A single Bubble has a name, a value and a position.
        It is the same as a Bubble series with only one bubble.
        The value determines the area of the circle and not the radius nor diameter.
        Only for BUBBLE charts.
      • AddCandlePoint (X As String, Open As Double, Height As Double, Low As Double, Close As Double, ShowTick As Boolean)
        Adds a Candel point.
        ShowTick = True displays the x value on the X axis.
      • AddCandlePoint2 (X As String, Open As Double, Height As Double, Low As Double, Close As Double, Volume As Double, ShowTick As Boolean)
        Adds a Candel point.
        Volume = Transaction volume during the time period.
        ShowTick = True displays the x value on the X axis.
      • AddHorizontalLine (Value As Double, Color As Int, StrokeWidth As Int, DisplayValue As Boolean)
        Adds a horizontal line at the given Y scale value with the given color and width.
        If a line with this value already exist, updates the Color and StrokeWidth.
        Valid for BAR and HBAR charts and LINE charts only with same Y scales.
        Valid also for H_BAR charts charts only with same Y scales, but the line is vertical.
      • AddLine (Name As String, LineColor As Int)
        adds a line
        only for Line charts !
      • AddLine2 (Name As String, LineColor As Int, StrokeWidth As Int, PointType As String, PointFilled As Boolean, PointColor As Int) As String
        adds a line
        StrokeWidth = line thickness
        PointType, possible values: "NONE", "CIRCLE", "SQUARE", "TRIANGLE", "RHOMBUS", "CROSS+", "CROSSX"
        only for Line charts !
      • AddLineMultiplePoints (X As String, YArray As Double(), ShowTick As Boolean) As String
        adds multiline points data
        ShowTick = True displays the x value in the X axis
        only for Line charts !
      • AddLinePointData (X As String, Y As Double, ShowTick As Boolean)
        adds single line point data
        ShowTick = True displays the x value in the X axis
        only for Line charts !
      • AddPie (Name As String, Value As Float, Color As Int) As String
        Adds a pie slice item
        Color: 0 = random color
        only for Pie charts !
      • AddRadar (Name As String, Color As Int, SrokeWidth As Int, Filled As Boolean)
        adds a radar
        only for Radar charts !
      • AddRadar2 (Name As String, Color As Int, SrokeWidth As Int, Filled As Boolean, PointType As String, PointFilled As Boolean, PointColor As Int)
        adds a radar
        PointType, possible values: "NONE", "CIRCLE", "SQUARE", "TRIANGLE", "RHOMBUS", "CROSS+", "CROSSX"
        only for Radar charts !
      • AddRadarMultiplePoint (X As String, YArray As Double)
        adds multiradar points data
        only for Radar charts !
      • AddRadarPointData (X As String, Y As Double)
        adds single radar data
        only for Radar charts !
      • AddWaterfallPoint(BarType As Stringg, X As String, Y As Double)
      • AddYXLine (Name As String, LineColor As Int, StrokeWidth As Int) As String
        adds a YXLine
        only for YXCharts !
      • AddYXLine2 (Name As String, LineColor As Int, StrokeWidth As Int, DrawLine As Boolean, PointType As String, PointFilled As Boolean, PointColor As Int) As String
        adds a YX line
        StrokeWidth = line thickness
        DrawLine = False allows to draw only the points
        PointType, possible values: "NONE", "CIRCLE", "SQUARE", "TRIANGLE", "RHOMBUS", "CROSS+", "CROSSX"
        only for YXCharts !
      • AddYXPoint (LineIndex As Int, X As Double, Y As Double) As String
        adds a point in the given lines
      • Base_Resize (Width As Double, Height As Double)
        resizes the Chart with new Width and Height
      • ClearData
        clears all data, not the title nor axis names
      • ClearDisplayedValues
        Clears the cursor and displayed values
        useful if KeepDisplayValues was set to True
      • ClearPoints
        clears all points, not the title nor axis names
      • DrawChart
        draws a chart
      • DrawEmptyChart
        Draws an empty chart with the current background color.
      • GetYScaleNMaxValue (Index As Int)
        Gets the Y scale max value for the given curve.
        Index of the curve between 0 and 3.
        Works only with AutomaticScale = False.
        Setting YScaleMaxValue sets automatically AutomaticScale = False.
      • GetYScaleNMinValue (Index As Int)
        Gets the Y scale min value for the given curve.
        Index of the curve between 0 and 3.
        Works only with AutomaticScale = False.
        Setting YScaleMaxValue sets automatically AutomaticScale = False.
      • GetMaxNumberBars As Int
        Returns an Int
        gets the max number of displayable bars or group of bars
        this method can be called before DrawChart to determine the number max of displayable bars
        this can allow to adapt the filling routine according to the capacity of the chart        .
      • GetMaxNumberBars2 As Int
        Gets the max number of displayable bars or group of bars.
        This method can be called before DrawChart to determine the number max of displayable bars.
        This can allow to adapt the filling routine according to the capacity of the chart.
        Not as precise as GetMaxNumberBars.
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • JumpTo (Index As Int)
        Jumps to the given index when a chart is zoomed.
        does nothing when the chart is unzoomed.
      • NumberFormat3 (Number As Double, MaxDigits As Int) As String
        formats a number with scientific notation
        MaxDigits = number max of digits
        Examples: 1.23456 / 12.3456 / 1234.56 / 123456 / 1.23E10
      • NumberFormat4 (Number As Double, MaxDigits As Int, Scientific As Boolean) As String
        Formats a number with either scientific notation or n, , m, K, M, G notation.
        MaxDigits = number max of digits.
        Examples for 6 digits: 1.23456 / 12.3456 / 1234.56 / 123456 / 1.23E10.
        Examples for 6 digits: 1.23456 / 12.3456 / 1.23456K / 12.3456K / 1.23G.
      • RemoveHorizontalLine (Value As Double)
        Removes the horizontal line from the list with the given value.
        Value = Y scale value.
      • RemovePointData (Index As Int) As String
        removes the data of the point with the given index
      • SetBarMeanValueFormat (MinimumIntegers As Int, MaximumFractions As Int, MinimumFractions As Int, GroupingUsed As Boolean)
        sets a custom numberformat for the bar mean line value, values like NumberFormat2
        if set, it overides the default format
        to go back to the default format, comment the line defining the custom number format
      • SetCustomFont (CustomFontName As String, CustomFontName As Double)
        Sets a custom font.
        CustomFontName can be either:
        a custom font ttf file, B4J and B4A
        or a font name only B4J
        CustomFontScale is a scale factor to increas or decrease the text sizes
        epending if the font is bigger or smaller than the defautl font
        Defautlt value = 1
        B4i, when you use a ttf file you must add the line below in the Main module in the Project Attributes Region:
        #AppFont: MyCustomFont.ttf, replace MyCustomFont by the name of the custom font.
        Explanations here: https://www.b4x.com/android/forum/threads/custom-fonts.46461/#content
        Example with a custom font file:
        xChart1.SetCustomFont("MyCustomFont.ttf", 1.2)
        Example with a custom font name:
        xChart1.SetCustomFont("Times New Roman", 1)
        Example back to default font (in this case the CustomFontScale value is automatically set to 1):
        xChart1.SetCustomFont("", 1)
      • SetYScaleNMaxValue (Index As Int)
        Sets the Y scale max value for the given curve.
        Index of the curve between 0 and 3.
        Works only with AutomaticScale = False.
        Setting YScaleMaxValue sets automatically AutomaticScale = False.
      • SetYScaleNMinValue (Index As Int)
        Sets the Y scale min value for the given curve.
        Index of the curve between 0 and 3.
        Works only with AutomaticScale = False.
        Setting YScaleMinValue sets automatically AutomaticScale = False.
      • SetZoomIndexes (BeginIndex As Int, EndIndex As Int)
        sets the zoom indexes, the values must be between 0 and Points.Size -1
        valid only for LINE, BAR, STACKED_BAR, H_LINE, H_BAR and H_STACKEDBAR charts
        this method should be called after having added the points data.
      • SetZoomSteps (SmallStep As Int, BigStep As Int)
        Sets the zoom steps
        SmallStep = step when the left or right button is pressed
        BigStep = step when the area between the lider and a button is pressed
      • UnZoom
        Unzooms the chart.
    • Properties:
      • AreaFillAlphaValue As Int
        gets or sets the AreaFillAlphaValue property
        this value represents the alpha value of the area fill color for AREA and STACHED_AREA charts only
        the area fill color is the line color with this alpha value
      • AutomaticScale As Boolean
        gets or sets the AutomaticScale property
        if True, the scales are automatically calculated to fill the chart, with 1, 2, 2.5, 5 standardized scales
      • AutomaticTextSizes As Boolean
        gets or sets the AutomaticTextSizes property
        if True, the text sizes are automatically calculated according to the chart size
      • AxisTextColor As Int
        gets or sets the AxisTextColor property
      • AxisTextSize As Float
        gets or sets the AxisTextSize property
        setting this text size sets automatically AutomaticTextSizes = False
      • BarValueOrientation As Boolean
        gets or sets the BarValueOrientation property
        Possible values: VERTICAL, HORIZONTAL
      • BubbleDiameterMax As Double
        Gets or sets the BubbleDiameterMax, only for BUBBLE charts.
        Max diameter of a bubble in percent of the smallest chart side (width or height).
        This value is used for the highest bubble value.
        For lower values, the bubble area is proportional. The diameter is proportional to the square root of the ratio.
        Default value 10%.
      • BubbleDiameterMin As Double
        Gets or sets the BubbleDiameterMin, only for BUBBLE charts.
        Min diameter of a bubble in percent of the smallest chart side (width or height).
        Default value 1%.
      • BubbleSmallSnap As Boolean
        Gets or sets the BubbleSmallSnap, only for BUBBLE charts.
        False = the cursor snaps when it is insides the bubble.
        True = the cursor snaps when it is near the bubble center (3dip).
        Default value False.
      • CandleDrawBodyBorder As Boolean
        Gets or sets the getCandleDrawBodyBorder, only for CANDLE charts.
        Draws a border on the candle body with the shadow color.
      • CandleDisplayVolume As Boolean
        Gets or sets the CandleDisplayVolume, only for CANDLE charts.
        'True = displays the trade Volume on the bottom of the CANDLE chart and displays its value in the popup panel.
        'Example code: <code>CandleChart1.CandleDisplayVolume = True</code>
      • CandleWickColor As Int
        Gets or sets the CandleWickColor, only for CANDLE charts.
        Wick is the line above and below the candle body when the Open and Close values are above or below the Low and High values.
        It must be a xui.Color value, FF0000FF (Blue) = default value.
        Example code:
        CandleChart1.CandleWickColor = xui.Color_Black
      • CandleWickWidth As Int
        Gets or sets the CandleWickWidth, only for CANDLE charts.
        Wick is the line above and below the candle body when the Open and Close values are above or below the Low and High values.
        It must be a dip value, not a pixel value.
        Example code:
        CandleChart1.CandleWickWidth = 1
      • ChartBackgroundColor As Int
        sets the ChartBackgroundColor property
        the color must be an xui.Color
        Example code: <code>xChart1.ChartBackgroundColor = xui.Color_RGB(207, 220, 220)</code>
      • ChartType As String
        gets or sets the chart type
        Possible values: LINE, BAR, H_BAR, STACKED_BAR, H_STACKED_BAR, PIE, YX_CHART, RADAR
      • DecreaseColor As Boolean
        Gets or sets the DecreaseColor, only for CANDLE and WATERFALL charts.
        The DecreaseColor is used in CANDLE charts when the Close value is lower than the Open value.
        Or in WATERFALL charts when the bar value is negative.
        It must be a xui.Color value, FFAA0000 (Green) = default value.
        Example code:
        CandleChart1.DecreaseColor = xui.Color_RGB(128, 0, 0)
      • DifferentScales As Boolean
        gets or sets the DifferentScales property, only for LINE and YX_CHART charts.
        when True, displays the lines with different automatic scales for two up to four lines.
        if the number of lines is smaller than 2 and bigger than 4, then all lines have the same scale.
      • DisplayCursor As Boolean
        Gets or sets the DisplayCursor property.
        Allows to displays the cursor when clicking or moving on the chart when DislpayValues = False.
      • DisplayValues As Boolean
        gets or sets the DisplayValues property
        if True, displays the point values when moving the finger or the cursor on the chart.
      • DisplayValuesOnHover As Boolean
        gets or sets the DisplayValuesOnHover property
        if True, displays the item values when hovering with the cursor over a chart; valid only for B4J.
      • DrawGridFrame As Boolean
        sets or gets the DrawGridFrame property, True by default
        if False, no frame, only the X and Y axes are drawn
      • DrawHorizontalGridLines As Boolean
        sets or gets the DrawHorizontalGridLines property, True by default
        if False, no horizontal grid lines are drawn
      • DrawOuterFrame As Boolean
        gets or sets the DrawOuterFrame property of the Chart
        draws an outer frame around the chart
      • DrawVerticalGridLines As Boolean
        sets or gets the DrawVerticalGridLines property, True by default
        if False, no vertical grid lines are drawn
      • DrawXScale As Boolean
        gets or sets the DrawXScale property
        True by default, if False doesn't draw the X scale values
        not drawing the scale can be useful for small charts
        not for logarithmic scales
      • DrawYScale As Boolean
        gets or sets the DrawYScale property
        True by default, if False doesn't draw the Y scale values
        not drawing the scale can be useful for small charts
        not for logarithmic scales
      • GradientColors As Boolean
        gets or sets the GradientColors property
      • GradientColorsAlpha As Int
        gets or sets the GradientColorsAlpha property
        values between 0 and 255
        setting this value, set automatically the GradientColors property to True
      • GridColor As Int
        sets the GridColor property
        the color must be an xui.Color
        Example code: <code>xChart1.GridColor = xui.Color_RGB(169, 169, 169)</code>
      • GridFrameColor As Int
        sets the GridFrameColor property
        the color must be an xui.Color
        Example code: <code>xChart1.GridFrameColor = xui.Color_Blue</code>
      • HBarTicksTopDown As Boolean
        gets or sets the HBarsTicksTopDown property for H_BAR and H_STACKED_BAR charts
        False = draws the tick values from bottom to top, default value
        True = draws the tick from top to bottom
      • HBarXScaleOnTop As Boolean
        gets or sets the HBarsXScaleOnTop property for H_BAR and H_STACKED_BAR charts
        False = draws the horizontal scale on bottom, default value
        True = draws the horizontal scale on top
      • Height As Int
        gets or sets the Height property
      • IncludeBarMeanLine As Boolean
        gets or sets the IncludeBarMeanLine property
        possible only for single bar charts
      • IncludeLegend As String
        gets or sets the IncludeLegend property
        possible values: NONE, TOP_RIGHT, BOTTOM
      • IncludeMaxLine As Boolean
        gets or sets the IncludenMaxLine property, only for single line Chart
        inserts a line at the level of the max value
      • IncludeMeanLine As Boolean
        gets or sets the IncludeMeanLine property, only for single line Chart
        inserts a line at the level of the mean value
      • IncludeMinLine As Boolean
        gets or sets the IncludeMinLine property, only for single line Chart
        inserts a line at the level of the min value
      • IncludeValues As String
        gets or sets the IncludeValues property
        possible only for single bar charts or pie charts with TOP_RIGHT legend
      • IncreaseColor As Int
        Gets or sets the IncreaseColor, only for CANDLE and WATERFALL charts.
        The IncreaseColor is used in CANDLE charts when the Close value is higher than the Open value.
        Or in WATERFALL charts when the bar value is negative.
        It must be a xui.Color value, FF00AA00 (Green) = default value.
        Example code:
        CandleChart1.IncreaseColor = xui.Color_RGB(0, 128, 0)
      • KeepDisplayValues As String
        gets or sets the KeepValuesDisplay property
        possible values:
        NONE >; deletes the cursor and the displayed values after Touch_Up
        CURSOR >; keeps the cursor visible but deletes the values after Touch_Up
        BOTH >; keeps both, the cursor and the values visible after Touch_Up
      • Left As Int
        gets or sets the Left property
      • LegendBackgroundColor As Int
        sets the LegendBackgroundColor property
        the color must be an xui.Color
        Example code: xChart1.LegendBackgroundColor = xui.Color_ARGB(102, 255, 255, 255)
      • LegendTextColor As Int
        sets the LegendTextColor property
        the color must be an xui.Color
        Example code: xChart1.LegendTextColor = xui.Color_Black
      • LegendTextSize As Float
        gets or sets the LegendTextSize property
        setting this text size sets automatically AutomaticTextSizes = False
      • MaxLineColor As Int
        sets the single line chart MaxLineColor property
        the color must be an xui.Color
        Example code: <code>xChart1.MaxLineColor = xui.Color_Red</code>
      • MeanLineColor As Int
        sets the single line chart MeanLineColor property
        the color must be an xui.Color
        Example code: <code>xChart1.MeanLineColor = xui.Color_RGB(182, 74, 26)</code>
      • MinLineColor As Int
        sets the single line chart MinLineColor property
        the color must be an xui.Color
        Example code: <code>xChart1.MinLineColor = xui.Color_RGB(0, 128, 0)</code>
      • MissingDataValue As Double
        gets or sets the MissingDataValue property, only for LINE charts
        default value 1000000000
        when you set any value in a Line chart, it is considerd as a missing value
      • NbPoints As Int [read only]
        gets the number of points (read only)
      • NbXIntervals As Int
        gets or sets the NbYIntervals property, number of X axis intervals
        should be an even number, otherwise the 0 scale value might not be displayed
        valid only for YXCharts
      • NbYIntervals As Int
        gets or sets the NbYIntervals property, number of Y axis intervals
        should be an even number, otherwise the 0 scale value might not be displayed
      • PieAddPercentage As Boolean
        gets or sets the PieAddPercentage property.
      • PieGapDegrees As Int
        gets or sets the PieGapDegrees property.
        default value = 0
      • PiePercentageNbFractions As Int
        gets or sets the number of fractions for pie percentage values
        min = 0 max = 2
      • PieStartAngle As Int
        gets or sets the PieStartAngle property
        default value = 0 (three o'clock), positive clockwise
        twelve o'clock = -90
      • RadarDrawScale As Boolean
        gets or sets the RadarDrawScale property for RADAR charts
        True = draws the spider web type scale lines or circles
        depends on the RadarScaleType property SPIDER or CIRCLE
      • RadarDrawScaleValues As Boolean
        gets or sets the RadarDrawScaleValues property for RADAR charts
        True = draws the scale values
      • RadarScaleType As String
        gets or sets the RadarScaleType property for RADAR charts
        Either SPIDER or CIRCLE
      • RadarStartAngle As Int
        gets or sets the RadarStartAngle property for RADAR charts
        default value = 0 (three o'clock), positive clockwis        e
        twelve o'clock = -90
      • RemoveHorizontalLine (Value As Double)
        removes the horizontal line from the list with the given value.
        Value = Y scale value.
      • RemovePointData (Index As Int)
        removes the data of the point with the given index.
      • ReverseYScale As Boolean
        gets or sets the ReverseYScale property, only for LINE and YX_CHART charts
        False means min value on top and max value.
        True means min value at bottom and max value at bottom on top. Default value.
      • Rotation As Double
        gets or sets the Rotation property of the Chart
        rotates the entire chart
      • ScalesOnZoomedPart As Boolean
        gets or sets the ScalesOnZooedPart property.
        False means scales on the whoel chart.
        True means scales on the zooem part only.
      • ScaleTextColor As Int
        sets the ScaleTextColor property
        the color must be an xui.Color
        Example code: <code>xChart1.ScaleTextColor = xui.Color_Blue</code>
      • ScaleTextSize As Float
        gets or sets the ScaleTextSize property
        setting this text size sets automatically AutomaticTextSizes = False
      • ScaleValues As String
        gets or sets the ScaleValues property
        it is a string with the different scale values separated by the exclamation mark.
        it must begin with 1! and end with !10
        Example: the default property 1!2!2.5!5!10
      • ScaleXValuesLog As String
        gets or sets the ScaleXValuesLog property
        it is a string with the different scale values, for one decade, separated by the exclamation mark
        it must begin with 1! and end with !10
        only for YX_CHART X scale
        Example: the default property 1!2!5!7!10
      • ScaleYValuesLog As String
        gets or sets the ScaleYValuesLog property
        it is a string with the different scale values, for one decade, separated by the exclamation mark
        it must begin with 1! and end with !10
        only for LINE Y scale and YX_CHART Y scale
        Example: the default property 1!2!5!7!10
      • Snapshot As B4XBitmap [read only]
        returns a B4XBitmap object of the chart (read only)
      • Subtitle As String
        gets or sets the Subtitle property
      • SubtitleTextColor As Int
        gets or sets the SubtitleTextColor property
        the color must be an xui.Color
        Example code: <code>xChart1.SubitleTextColor = xui.Color_Black</code>
      • SubtitleTextSize As Float
        gets or sets the SubtitleTextSize property
        setting this text size sets automatically AutomaticTextSizes = False
      • Title As String
        gets or sets the Chart title
      • TitleTextColor As Int
        sets the TitleTextColor property
        the color must be an xui.Color
        Example code: <code>xChart1.TitleTextColor = xui.Color_Black</code>
      • TitleTextSize As Float
        gets or sets the TitleTextSize property
        setting this text size sets automatically AutomaticTextSizes = False
      • Top As Int
        gets or sets the Top property
      • ValuesBackgroundColor As Int
        sets the ValuesBackgroundColor property
        the color must be an xui.Color
        Example code: <code>xChart1.ValuesBackgroundColor = xui.Color_Black</code>
      • ValuesTextColor As Int
        sets the ValuesTextColor property
        the color must be an xui.Color
        Example code: <code>xChart1.ValuesTextColor = xui.Color_Black</code>
      • ValuesTextSize As Float
        gets or sets the ValuesTextSize property
        setting this text size sets automatically AutomaticTextSizes = False
      • Visible As Boolean
        gets or sets the Visible property
      • WaterfallTotalBarColor
        Gets or sets the WaterfallTotalBarColor, only for WATERFALL charts.
        Valid only for TotalBars.
        It must be a xui.Color value, FF0000FF (Blue) = default value.
        Example code:
        CandleChart1.WaterfallTotalBarColor = xui.Color_Black
      • Width As Int
        gets or sets the Width property
      • XAxisName As String
        gets or sets the X axis name
      • XMaxValue As Double
        gets or sets the X Max scale value
      • XMinValue As Double
        gets or sets the X Min scale value
      • XScaleLogaritmic As Boolean
        gets or sets the X scale to logarithmic
        valid only for positive numbers and for YX_CHART
      • XScaleMaxValue As Double
        gets or sets the X scale max value
        works only with AutomaticScale = False
        setting XScaleMaxValue sets automatically AutomaticScale = False
        valid only for YXChats
      • XScaleMinValue As Double
        gets or sets the X scale min value
        works only with AutomaticScale = False
        setting XScaleMinValue sets automatically AutomaticScale = False
        valid only for YXChats
      • XScaleTextOrientation As String
        gets or sets the X scale text orientation
        Possible values: VERTICAL, HORIZONTAL, 45 DEGREES
      • XZeroAxis As Boolean
        gets or sets the <xZeroAxis property for LINE charts
        if all values are positives, sets the lower X scale to zero
        if all values are negatives, sets the upper X scale to zero
      • XZeroAxisHighlight As Boolean
        gets or sets the XZeroAxisHighlight property
        if True draws the X Zero axis 2dip thick otherwise with 1dip
      • YAxisName As String
        gets or sets the Y axis name
      • YMaxValue As Double
        gets or sets the Y Max scale value
      • YMinValue As Double
        gets or sets the Y Min scale value
      • YScaleLogarithmic As Boolean
        gets or sets the Y scale to logarithmic
        valid only for positive numbers and for LINE and YX_CHART
      • YScaleMaxValue As Double
        gets or sets the Y scale max value
        works only with AutomaticScale = False
        setting XScaleMaxValue sets automatically AutomaticScale = False
      • YScaleMinValue As Double
        gets or sets the Y scale min value
        works only with AutomaticScale = False
        setting XScaleMaxValue sets automatically AutomaticScale = False
      • YXChartCrossHairColor As Int
        gets or sets the YXChartCrossHairColor property, only for YX_CHARTs.
        it must be a xui.Color value, black = default value.
        Example code: YXChart1.YXChartCrossHairColor = xui.Color_Black.
      • YXChartCrossHairDeltaY As Int
        gets or sets the YXChartCrossHairDeltaY property, only for YX_CHARTs.
        the horizontal line of the cross hair cursor is shifted topwards by the given value.
        this useful to not cover the horizontal cursor line with the finger.
      • YXChartDisplayCrossHair As Boolean
        gets or sets the YXChartDisplayCrossHair property, only for YX_CHARTs.
        True = displays cross hair lines at the cursor position.
      • YXChartDisplayPosition As String
        gets or sets the YXChartDisplayPosition, only for YX_CHARTs.
        possible values:
        CURSOR > displays the coordinates of the cursor position at the cursor position, default value.
        CORNERS &gt; displays the coordinates of the cursor position in one of the four corners.
        Example code: YXChart1.YXChartDisplayPosition = "CURSOR".
      • YXChartDisplayValues As Boolean
        gets or sets the YXChartDisplayValues property, only for YX_CHARTs.
        True = displays the x and y coordinates of the cursor position.
      • YZeroAxis As Boolean
        gets or sets the YZeroAxis property for LINE charts
        if all values are positives, sets the lower Y scale to zero
        if all values are negatives, sets the upper Y scale to zero
      • YZeroAxisHighlight As Boolean
        gets or sets the YZeroAxisHighlight property
        if True draws the Y Zero axis 2dip thick otherwise with 1dip
      • ZoomBarEnabled As Booleannt
        Gets or sets the ZoomBeginIndex property
        If False the zoom bar is disabled
        Default value = True
      • ZoomBeginIndex As Int
        Returns the ZoomBeginIndex property
        ZoomBeginIndex = index of the first displayed point
      • ZoomBigStep As Int
        Returns the zoom big step
        ZoomBigStep = step when the area between the lider and a button is pressed
      • ZoomEndIndex As Int
        Returns the ZoomEndIndex property
        ZoomEndIndex = index of the last displayed point
      • ZoomNbVisiblePoints As Int
        Returns the ZoomNbVisiblePoints property
        ZoomNbVisiblePoints = number of visible points
      • ZoomSmallStep As Int
        Returns the zoom small step
        ZoomSmallStep = step when the left or right button is pressed


Attachments

  • B4XPagesxChartDemoV8_8.zip
    40.5 KB · Views: 1,268
  • B4JLogScaleV8_8.zip
    4.7 KB · Views: 919
  • xChart.b4xlib
    46.5 KB · Views: 701
  • xChart.xml
    75 KB · Views: 558
Last edited:
Click to expand...
K

Kevin L. Johnson

Member
Licensed User
Longtime User
On the yxChart, Is there a way to plot multiple types of data but with differing amounts of data array lengths?

For example, limit lines (either vertical or horizontal) onto the Chart. Or one data set with 100 data points against another dataset with 50 data points.

The example plots three sets of yx scatter data but they all have the same number of points. This is causing me to scratch my head a bit to plot data points that come in once a second with data that comes in 4 times per second with maybe a vertical limit line etc.

Thanks for any help.

klaus

klaus

Expert
Licensed User
Longtime User
Try the attached version.
You can use sets with different number of points.
I changed the data structure for YXCharts.
You need to change the filling of the arrays.
One point per line.
New method:
YXChart1.AddYXPoint(LineIndex, X, Y)
Old methods, removed:
YXChart1.AddXYPointData(X, Y)
YXChart1.AddYXMultiPoints(XArray, YArray)

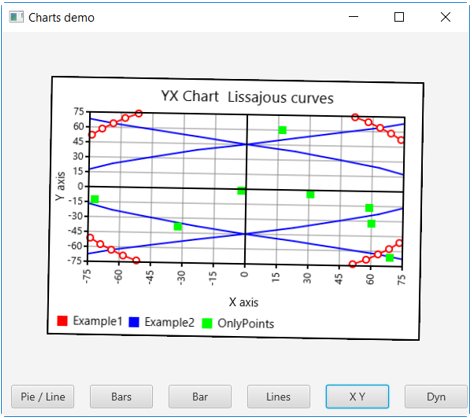

You see that there are much less green points.

EDIT: removed the zip file.

Last edited:
K

Kevin L. Johnson

Member
Licensed User
Longtime User
Klaus,

Your latest addition to YXChart is working nicely to add multiple datasets of differing numbers of datapoints.

Unfortunately, I seem to be having difficulty with the axis scaling (such as .YScaleMinValue = -5 and .YScaleMaxValue = 120 with or without also specifying the X max and min values within the internal designer.

In short, the scaling does not seem to work properly.

also ...
Q1: Is there a reason the chart type is called YXChart instead of XYChart?

Q2: Is there a reason the X min and max values can only be specified in the Internal Designer?

Thanks for all your efforts.

Kevin

Last edited:
klaus

klaus

Expert
Licensed User
Longtime User
In short, the scaling does not seem to work properly.
Click to expand...
In the Designer, if you want to use the scale min and max values you must set Automatic scales to False, un check the property.
In version 1.9, when setting min and max scale values in the code, you needed to set also Automatic scales to False in the code, this is no more necessary in version 2.0.

Q1: Is there a reason the chart type is called YXChart instead of XYChart?
Click to expand...
For me Y is a function of X, so YXChart.
I have in mind to eventually add a YtChart type (Y as a function of time).
Q2: Is there a reason the X min and max values can only be specified in the Internal Designer?
Click to expand...
No, I missed to add these properties, done in version 2.0.

Attached version 2.0.
Added get / setXScaleMinValue and get / setXScaleMaxValue properties
Added Automatic = False when scale values are changed

When it is OK for you, I will update the project in the first post.

EDIT: 2018.07.30 Removed the zip file, it is in the first post.

Last edited:
K

Kevin L. Johnson

Member
Licensed User
Longtime User
klaus said:
In the Designer, if you want to use the scale min and max values you must set Automaric scales to False, un check the property.
In version 1.9, when setting min and max scale values in the code, you needed to set also Automatic scales to False in the code, this is no more necessary in version 2.0.
Click to expand...

Thanks Klaus,
Everytime I develop software using B4X, or one of its libraries (including user contributed code), I feel like I truly am 'Standing on the Shoulder of Giants'! THANKS FOR BEING A GIANT metaphorically that is. :--)

I am now able to control the plot scaling in order to view the data nicely. There are a few artifacts such as this,...
Screen Capture 2.PNG

which can easily be controlled by making sure my axis scaling is appropriate for 'containing' the data values ... ( in an ideal world, data that falls outside of the scaled chart area would not plot or be seen, but I AM very much grateful for the current capability) .

And for a few more items that I have discovered ...
It appears as though while YXChart1.NbYIntervals = 10 can be set programmatically via the code interface

YXChart1.NbXIntervals cannot as it is NOT EXPOSED in the programmatic code interface

QUESTION1: Is there a way for me to Capture an image of the Chart in order to later produce an HTML Report of sorts?

QUESTION2: Is there any way to track the XY position of the Mouse as it moves over xChart through a mouse move event of sorts?

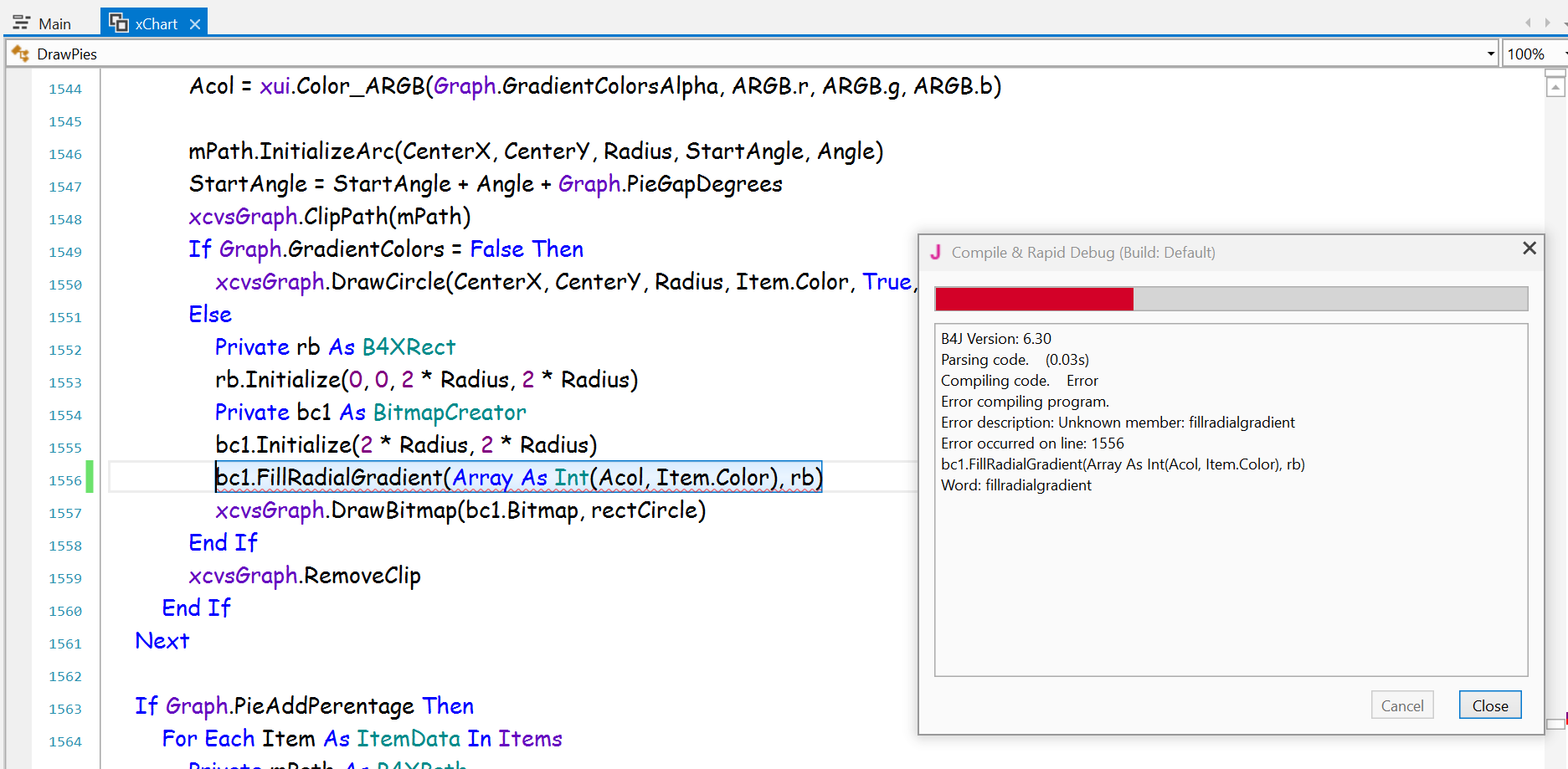

Furthermore ... In case this hasn't been mentioned yet ... recently when I have obtained the latest version(s) of this library, the first run of the Chart Demo produces this screen (I promptly circumvent it by commenting out the line, but would like to know what, if anything I might be doing wrong)...

Last edited:
Peter Simpson

Peter Simpson

Expert
Licensed User
Longtime User
Kevin L. Johnson said:
Furthermore ... In case this hasn't been mentioned yet ... recently when I have obtained the latest version(s) of this library, the first run of the Chart Demo produces this screen (I promptly circumvent it by commenting out the line, but would like to know what, if anything I might be doing wrong)...
View attachment 70143
Click to expand...

Do not comment out line 1556, change it to the following line.
B4X:
bc1.FillRadialGradient(bc1, Array As Int(Acol, Item.Color), rb)

Enjoy...

K

Kevin L. Johnson

Member
Licensed User
Longtime User
Peter Simpson said:
Do not comment out line 1556, change it to the following line.
B4X:
bc1.FillRadialGradient(bc1, Array As Int(Acol, Item.Color), rb)
Click to expand...

Thanks Peter,

After doing this it still errors out with ..
Error description: Unknown member: fillradialgradient
Error occurred on line: 1560

However, when I change it from ...
bc1.FillRadialGradient(Array As Int(Acol, Item.Color), rb)
To
bc1.FillGradient(Array As Int(Acol, Item.Color), rb, "TOP_BOTTOM")

it does work ... but I'm not sure if this was the original intent.

Perhaps I have the wrong version of Bitmap creator? My IDE Library Manager indicates that it is jBitmap Creator Version: 3.11

klaus

klaus

Expert
Licensed User
Longtime User
You have the wrong jBitmapCreator library version, the latest is version 4.00.
It is included as a standard library in the latest versions of B4J. I think that it should work with version 3.61.
Which version of B4J do you use.

I will answer the other questions tomorrow.

K

Kevin L. Johnson

Member
Licensed User
Longtime User
klaus said:
You have the wrong jBitmapCreator library version, the latest is version 4.00.
It is included as a standard library in the latest versions of B4J. I think that it should work with version 3.61.
Which version of B4J do you use.
Click to expand...

Thanks Klaus ... Under the Help Menu and the About Sub-menu it indicates B4J Version 6.3

klaus

klaus

Expert
Licensed User
Longtime User
There are a few artifacts such as this,...
Click to expand...
I prefer automatic scales, therfore, the scales are calculated automatically by default. You might use automatic scales.
Anyway, amended, I added a clip function to avoid drawing outsides the grid.
YXChart1.NbXIntervals cannot as it is NOT EXPOSED in the programmatic code interface
Click to expand...
Added the NbXIntervals property.
QUESTION1: Is there a way for me to Capture an image of the Chart in order to later produce an HTML Report of sorts?
Click to expand...
Added the Snapshot property (read only).
QUESTION2: Is there any way to track the XY position of the Mouse as it moves over xChart through a mouse move event of sorts?
Click to expand...
What do you want to do with? Do you want scaled units or pixels.
Added a Touch event with scaled units for testing.



Clipped drawing.

EDIT: Removed the zip file.

Last edited:
K

Kevin L. Johnson

Member
Licensed User
Longtime User
klaus said:
I prefer automatic scales, therfore, the scales are calculated automatically by default. You might use automatic scales.
Anyway, amended, I added a clip function to avoid drawing outsides the grid.

Added the NbXIntervals property.

Added the Snapshot property (read only).

What do you want to do with? Do you want scaled units or pixels.
Added a Touch event with scaled units for testing.

View attachment 70166

Clipped drawing.
Click to expand...

WOW! I am Speechless, Thanks for adding all three, the Clipped drawing, NbXintervals and the snap-shot property (all these features make for great images in the HTML reports).

As for why I wanted the Mouse Move XY position (scaled units are desired), it was so that I might be able to more dynamically interact with the plots. For instance, placing crosshairs, displaying chart coordinates like in my past VB6 project days (I was hoping for the event to fire on mouse move – although the addition of the Touch event works out great too!). I tried it on a large 72” Dell Touch Monitor. Thanks very much.

(Slight Digression here, but related to xChart)
Lastly, I found another great discussion in the B4j Forums (this time in the B4A forum, re rotating a view in degrees) and low and behold it was Klaus again … in that post you recommended a separate post regarding ‘view utils’.

https://www.b4x.com/android/forum/threads/view-utils.39347/

This is critical for another B4J project (where I want to rotate photographs of Charts displayed on screens that are angled to the camera lens (I tried out your demo and it is perfect!, but coded for B4A). I did copy it over to B4J but it was confused about what type of ‘view’ was referred in the subroutines called interface. I tried several things but was never able to get it to run in B4J.

Also, believe it or not I have a bit of a need to rotate the xChart View within B4J to align the chart's data with the Screens VERTICAL sides, something like rotating to fit beside geographic features ‘on the ground’ that would be displayed in the background of the layout.

QUESTION1: Is it possible to use the View Utils for rotating views in B4J?

AND

QUESTION2: Would these ‘ported’ B4J version of ‘view utils’ work with the xChart View also in B4J?

Last edited:
klaus

klaus

Expert
Licensed User
Longtime User
QUESTION1: Is it possible to use the View Utils for rotating views in B4J?
Click to expand...
No.
QUESTION2: Would these ‘ported’ B4J version of ‘view utils’ work with the xChart View also in B4J?
Click to expand...
The best way to port this, is to use the cross platform XUI library.

The answer to your question is quite simple!
The B4XView has a Rotaion property. This is now implemented in the project below (I left the same version number).
As this is a cross platform object, it is valid for B4A, B4i and B4J !
This is the BIG advantage of using the XUI library, even for mono platform projects.




EDIT: 2018.07.30 Removed the zip file, it's in the first post.

Last edited:
K

Kevin L. Johnson

Member
Licensed User
Longtime User
klaus said:
No.

The best way to port this, is to use the cross platform XUI library.

The answer to your question is quite simple!
The B4XView has a Rotaion property. This is now implemented in the project below (I left the same version number).
As this is a cross platform object, it is valid for B4A, B4i and B4J !
This is the BIG advantage of using the XUI library, even for mono platform projects.


View attachment 70198
Click to expand...
Agreed! I will be developing with XUI as much as possible, I just had no idea that an XUI view's rotation was built in, And I appreciate your adding the feature(s) to your xChart class. Your work really is Awesome!

Last edited:
klaus

klaus

Expert
Licensed User
Longtime User
The xChart Class has been updated to version 2.1.

EDIT: 2018.07.30 Version 2.1
Added the NbXIntervals property
Added the SnapShot property
Added the Rotation property
Added the DrawOuterFramw property
Added a clip function to avoid lines being drawn outsides the grid
Added a Touch event for YXCharts returning the X and Y coordinates of the cursor

EDIT: 2018.07.19 Version 2.0
Added XScaleMinValue and XScaleMaxValue properties

EDIT: 2018.07.14 Version 1.9
Modified the data structure for YXChart to allow lines with different number of points.

Last edited:
Peter Simpson

Peter Simpson

Expert
Licensed User
Longtime User
Hello @klaus,
This is just a quick message to let you know that Bitmapcreator V4.0 breaks xChart. When I go back to BitmapCreator V3.2 it works again.

Using BitmapCreator V4.0 only breaks xChart in Release (Obfuscated) mode, xChart still works just fine whilst debugging in Debug mode and Release mode.

I've not had a chance to look at it properly though, I just reverted straight back to the previous BitmapCreator.

Please note that I may have missed something obvious though, I didn't really look that closely.

Cheers...

Last edited:
klaus

klaus

Expert
Licensed User
Longtime User
With which product do you get the problem B4A, B4i, B4J?
I suppose B4J, it's the only product with BitmapCreator version 4.00.
Do you get any error?
Can you test the attached project, amended some bugs.
EDIT removed the zip fils, outdated.

Last edited:
Peter Simpson

Peter Simpson

Expert
Licensed User
Longtime User
Good morning @klaus
Firstly sorry I got my messages mixed up as I was not concentrating when typing.
Yes B4J
Anyway everything appears to be working now, thank you for the code update.

Your attached project appears to have sorted everything out.

Have a nice relaxing day with your family...

You must log in or register to reply here.

Similar Threads

Alexander Stolte
  • Article
Android Example [B4X] AS DraggableBottomCard - Drag Indicator - Confirm Button
Replies
0
Views
1K
Alexander Stolte
Alexander Stolte
Star-Dust
Italian [B4X] fec [fatture e corrispettivi] [Scontrino senza registratore Telematico]
12 13 14
Replies
260
Views
27K
Star-Dust
Star-Dust
vhd_bgh
  • Question
Android Question Vertical "[B4X] [XUI] AnotherProgressBar"
Replies
4
Views
2K
Erel
Erel
ElliotHC
Games Space Shooter Image Assignment
Replies
6
Views
2K
Gunther
Gunther
derez
  • Article
Android Code Snippet [B4X] Daylight Saving Time for Israel
Replies
2
Views
2K
josejad
josejad
Top
